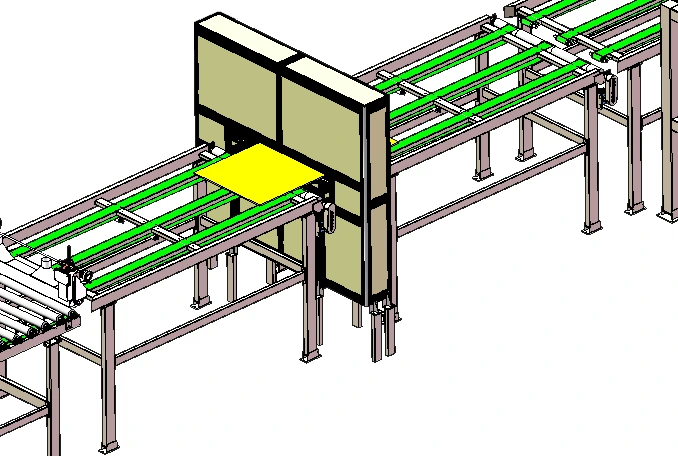

Wood-Based Panel (MDF partical board OSB plywood) Visual Inspection Sorting line 1

Wood-Based Panel (MDF partical board OSB plywood) Visual Inspection Sorting line 2

Wood-Based Panel (MDF partical board OSB plywood) Visual Inspection Sorting line

Inquiry

Write a Review

Complete Visual Inspection Solution for Wood Panel Surface Defects

Product Description

This advanced visual inspection solution is specially developed for the wood-based panel industry, covering plywood, MDF, particleboard, fiberboard and other mainstream panels.

Powered by high-precision industrial cameras, AI deep learning algorithms and intelligent image recognition technology, the system realizes full-automatic, real-time online detection of various surface and internal defects, including cracks, bubbles, scratches, color differences, impurities, pinholes, delamination and gluing defects.

Visual Inspection Solution supports seamless connection with existing production lines, achieving 24-hour uninterrupted intelligent screening instead of manual visual inspection. The system features high detection accuracy, fast recognition speed and strong anti-interference ability, effectively reducing missing inspection and false detection rates.

Meanwhile, it provides real-time data statistics, defect classification analysis and production quality traceability reports, helping enterprises optimize production processes, control product quality strictly, lower labor costs, and improve overall production efficiency and product qualification rate in the whole manufacturing process.

PRODUCT STRENGTH

Advantages

1.Full-coverage, multi-material adaptation

Suitable for particleboard (PB/SPB), MDF/HDF, OSB/FOSB and other wood-based panels. Supports thickness 0.8-40 mm and standard sizes 4×8/9/10ft (1220×2440–3050 mm), with wide compatibility.

2.High-precision defect detection

Minimum detectable defect: 0.8 mm (800 μm). Repeatability accuracy ±0.1 mm (100 μm). False detection ≤0.3%, missed detection ≤0.2%, zero missed detection for existing defects.

3.AI self-adaptive ADetector model

Uses prompt-based deep learning with zero-shot transfer capability. Fast model adaptation for new defects and new panels, outperforming traditional supervised learning.

4.Top/bottom/side 3-sided full inspection

Equipped with 16K/8K/2K industrial line-scan cameras and high-brightness direct light sources to clearly capture defects including:

Stains, oil, water marks, glue spots
Scratches, cracks, holes, pinholes
Chipped edges, bubbles, delamination
Rough surfaces, foreign materials, size deviations

5.High-speed online inline inspection

Line speed 100–300 m/min. Stable, low-vibration conveying design. Capacity up to 1300 m³ per 16 hours.

6.Intelligent grading & automatic sorting

Auto-output premium, qualified, and rejected grades. Customizable grading thresholds to ensure zero defects in premium boards.

7.Stable & reliable industrial design

Rugged aluminum frame, anti-rust treatment. Operating temperature: -5°C to 42°C. Camera-light distance ≥50 mm (adjustable).

8.Intelligent software & data traceability

Real-time defect imaging, size measurement, statistics, pie-chart analysis.

Supports shift/day reports, data export, and optional ERP/MES docking.

9.Seamless production line integration

Customizable height and width. Compatible with belt/roller conveyors. Easy retrofitting to existing lines.

10.Complete after-sales & remote service

On-site data collection, modeling, training, commissioning. Remote update for new defect models; on-site support if needed.

FAQ

Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

What is the minimum defect size the system can detect?

The minimum detectable defect is 0.8 mm (800 μm), with a repeatability accuracy of ±0.1 mm (100 μm), ensuring high precision for tiny flaws.

What kinds of defects can the system identify?

It can detect various surface and internal defects, such as stains, oil marks, water marks, glue spots, scratches, cracks, holes, pinholes, chipped edges, bubbles, delamination, rough surfaces, foreign materials, and size deviations.

What is the detection speed of the system?

It supports online inline inspection with a line speed of 100–300 m/min, and the maximum capacity can reach 1300 m³ per 16 hours, adapting to high-efficiency production lines.

Can the system be integrated with existing production lines?

Yes. It supports seamless connection with existing belt/roller conveyors, with customizable height and width, and can be easily retrofitted to existing production lines without affecting normal production.

What is the accuracy of the system? Will there be missed or false detections?

The system has ultra-high accuracy, with a false detection rate ≤0.3% and a missed detection rate ≤0.2%, achieving zero missed detection for existing standard defects.

How does the system adapt to new panel types or new defects?

It adopts the AI self-adaptive ADetector model with prompt-based deep learning and zero-shot transfer capability, which can quickly adapt to new panel types and new defects without complex retraining.

Does the system support quality grading and sorting?

Yes. It can automatically output three grades: Premium, Qualified, and Rejected, with customizable grading thresholds to ensure zero defects in premium boards.

Does the system have data traceability and reporting functions?

It supports real-time defect imaging, size measurement, data statistics, and pie-chart analysis, and can generate shift/day reports for data export. It also supports optional ERP/MES docking for full production quality traceability.
