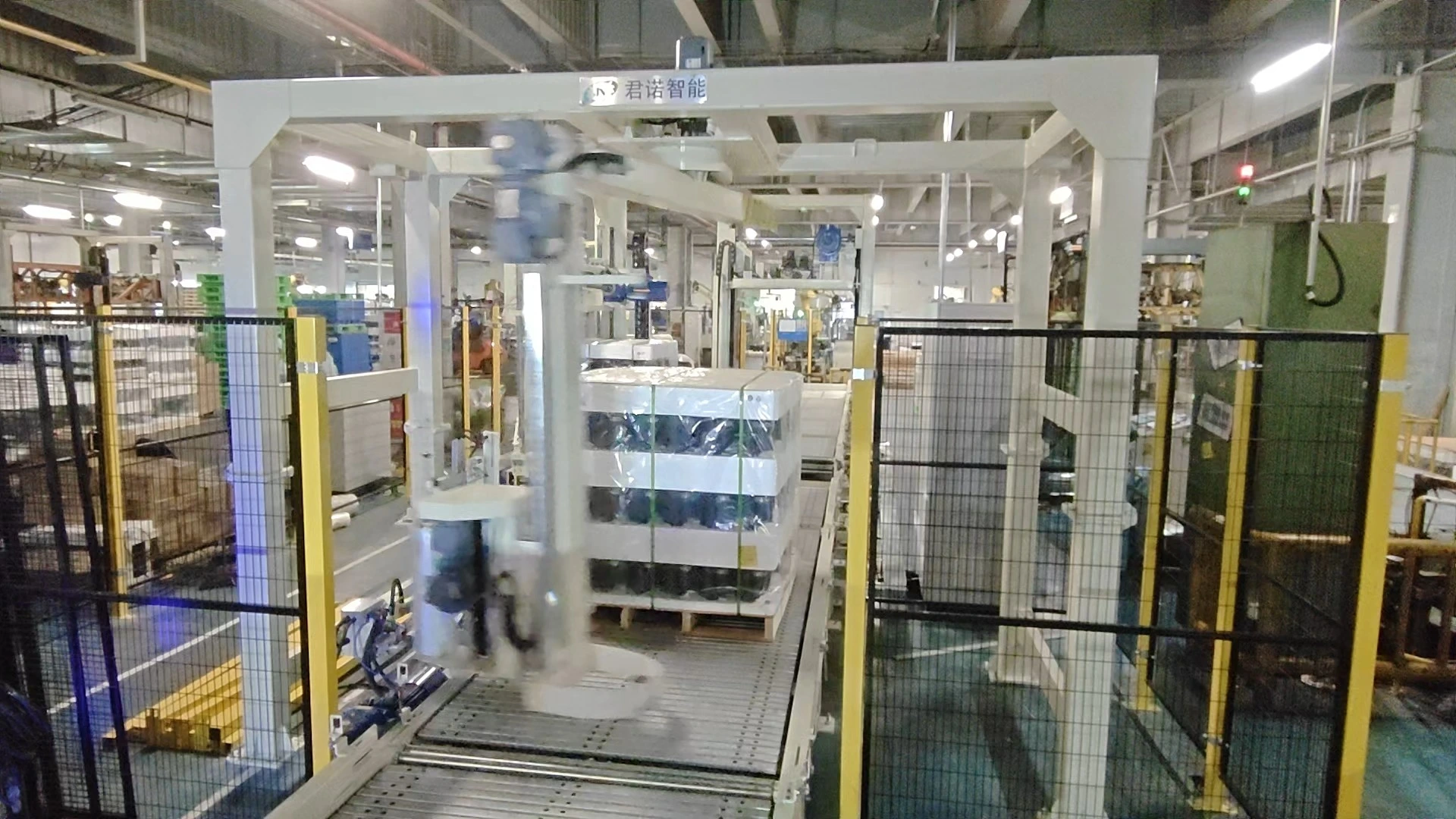

Fully Automatic AC Compressor Pallet Strapping Wrapping Machine Anti Scratch Design

This AC compressor pallet-specific all-in-one strapping & wrapping machine is the core supporting equipment of the rear-end automatic packaging line for air conditioner complete machine production. Deeply customized to address the industry pain points of AC compressors as precision electromechanical components, such as low efficiency of manual packaging, uneven strapping tension leading to casing deformation, paint chipping from hard contact, displacement in logistics transportation, and performance damage from moisture in warehousing, it completely replaces the tedious manual strapping and wrapping operations, and solves the problems of secondary transfer and inadequate protection of traditional single-function equipment.

The machine can be seamlessly connected with palletizers, roller conveyors and lift positioning tables at the rear end of AC production lines, completing the fully automated process of automatic conveying → precise centering positioning → intelligent multi-strap strapping (threading/tightening/cutting/bonding) → fully automatic moisture-proof wrapping (film loading/stretching/wrapping/cutting/sealing) → finished product discharging & transferring for AC compressor pallets without any manual intervention. A single machine can meet the whole-pallet packaging needs of household/commercial, fixed-frequency/inverter AC compressors.

• End of line packaging of AC compressor production: Directly connect with the equipment after compressor finished product palletizing to complete strapping and wrapping, adapted to assembly line production in special AC compressor factories

• Supporting packaging of air conditioner complete machine factories: Whole-pallet protective packaging of compressors before entering the complete machine production line, ensuring no scratch or moisture during warehousing temporary storage and workshop transportation

• AC compressor warehousing packaging: Standardized strapping and wrapping of finished compressors before warehousing, meeting the stability and moisture-proof requirements of high-level shelf stacking and long-term warehousing

• AC compressor logistics transportation packaging: Outbound packaging for distributors/logistics providers, adapted to long-distance road/sea transportation, preventing compressor pallet displacement, scratch and moisture

• Centralized packaging in home appliance industrial parks: Adapted to batch packaging of multi-category AC compressors in home appliance industrial parks, supporting quick switching of parameters for different specifications of compressors

• Custom packaging for exported AC compressors: Customizable overseas pallet standards/voltage adaptation/English operation interface, meeting the compliance requirements of exported AC compressor packaging

Q1: Will the compressor casing and pipelines be deformed due to excessive tension during the equipment packaging process?

A1: No. The equipment is specially equipped with a precision stepless tension adjustment system tailored for AC compressors. You can preset the soft strapping mode according to the compressor casing thickness and pipeline layout, with tension freely adjustable from 500N. Additionally, the strapping position can accurately avoid weak parts of the compressor casing and exposed pipelines, ensuring both pallet stability and complete protection against compressor deformation.

Q2: For large-displacement commercial AC compressor pallets weighing over 3000kg, will the pallets scatter during multi-layer stacking after strapping and wrapping?

A2: No. For heavy-duty commercial compressor pallets, the equipment can be customized with 6 horizontal + vertical cross strapping straps, paired with a heavy-duty strapping tension of ≥3000N. The hot-melt bonding strength reaches ≥90% of the strapping belt’s inherent strength. Meanwhile, the full-wrap wrapping process enhances overall pallet stability, supporting multi-layer stacking of 3000-4000kg heavy-duty pallets without any issues, fully meeting the warehousing stacking requirements of the home appliance industry worldwide.

Q3: Can the equipment connect with our existing palletizers and AGVs for AC compressor production to achieve full-line automation?

A3: Seamless docking is fully achievable. The equipment supports mainstream PLC communication protocols on the global market, including Modbus, Profinet, and EtherNet/IP, and is compatible with control signals of palletizers, AGVs, and roller conveyors commonly used in the international air conditioning industry. Our engineers will conduct on-site surveys of your existing production lines and provide customized docking based on your control mode, realizing the fully unmanned process of palletizing - strapping - wrapping - transferring.

Q4: For AC compressors exported overseas, can the equipment adapt to overseas pallet standards, voltages, and support English operation?

A4: Absolutely. We can customize the equipment to meet overseas pallet standards (such as European, American, and Australian standards) and adapt to overseas voltage requirements (220V/415V/480V, etc.) according to your specific needs. The equipment is equipped with a Chinese-English bilingual touch panel that can be directly switched to the English interface. We also provide a full English operation manual and overseas-specific after-sales support, fully complying with all requirements for exported AC compressor packaging.

Q5: In high-humidity warehousing environments (e.g., southern regions), can the equipment’s wrapping process effectively prevent compressors from dampness?

A5: Yes. The equipment is compatible with food-grade high-barrier moisture-proof PE stretch film, adopting a full-wrap + multi-layer wrapping process with precisely controllable wrapping tension, ensuring no gaps between film layers to effectively block moisture and water in the air. Additionally, the wrapping machine is equipped with a film moisture-proof bracket to prevent the PE film itself from absorbing moisture, ensuring compressors remain free from moisture oxidation during long-term storage in high-humidity environments.

Q6: Compared with manual strapping and wrapping, how much cost can this equipment save for air conditioning enterprises?

A6: One machine can replace 2-3 manual operators, saving approximately $14,000-$28,000 USD in labor costs annually. Meanwhile, the equipment reduces strapping belt consumption by 15% and PE film consumption by 40%, significantly cutting consumable costs. Furthermore, its low failure rate minimizes production line downtime losses. Overall, the comprehensive cost of the AC compressor packaging process can be reduced by more than 35%, and the equipment procurement cost can generally be recovered within 1 year.
