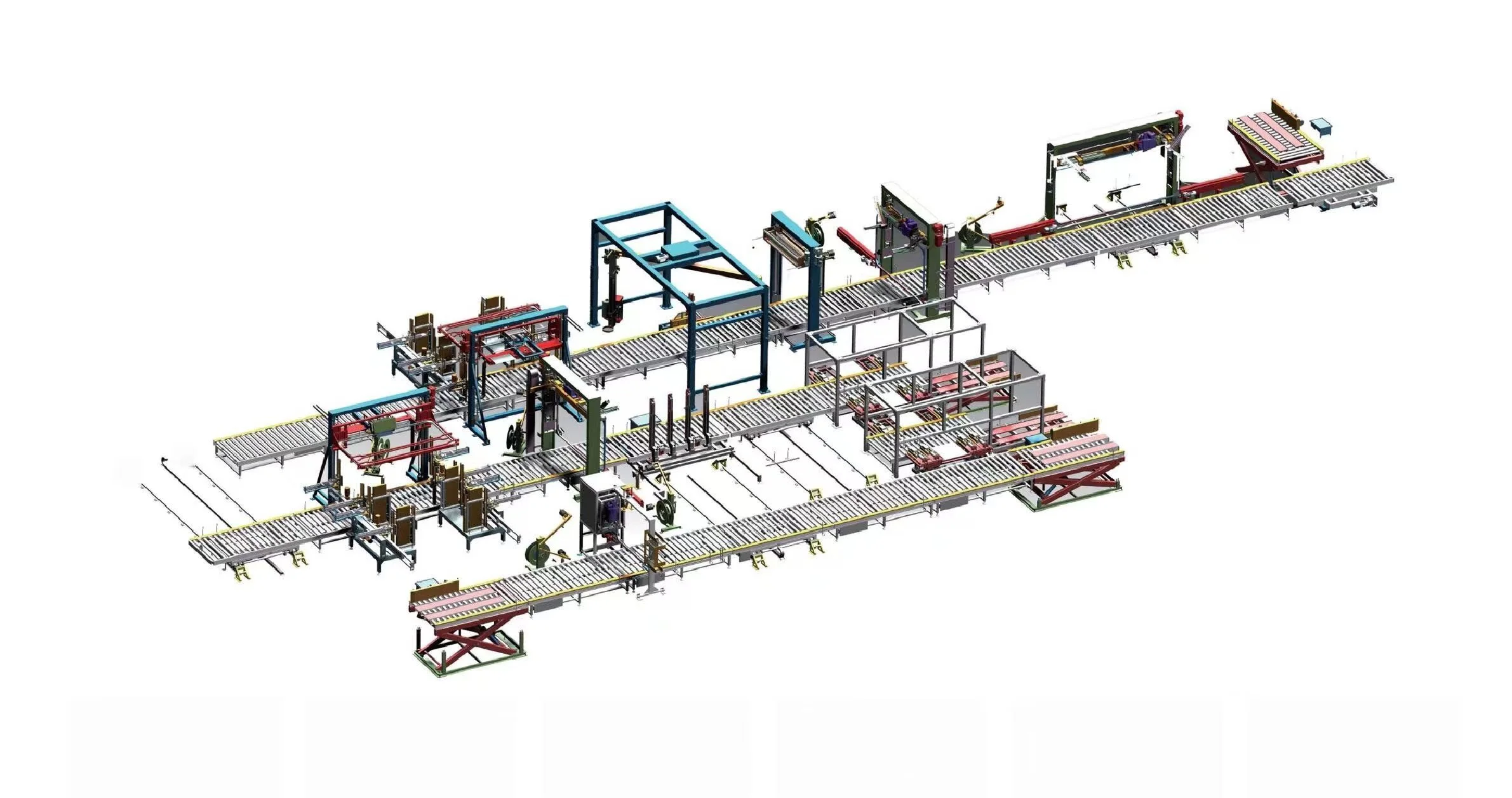

High-Speed PV Panel Packaging System with Palletizing, Corner Protection & Film Wrapping
Our High-Speed PV Panel Packaging System is a fully automated solution designed specifically for the photovoltaic industry. It efficiently and securely packages large-format solar modules at a rate of 20 stacks per hour, handling standard dimensions of 1200 x 2700 x 1200 mm.
The integrated line automates the complete process: from stacking and pallet transfer to advanced corner protection using our unique "sword packing" method and automatic film wrapping. It ensures maximum product integrity during transit with features like four-side corner guards, horizontal strapping, and double-pallet stacking capability.
This system is engineered to boost packaging throughput, minimize labor, and virtually eliminate shipping damage—making it the ideal turnkey solution for PV manufacturers and distributors seeking reliability and scalability.
Packaging Line Process
1. Inner bags are packed and fixed into stacks
2.Then flip the stack and replace the transfer iron pallet with a delivery wooden pallet.3.Inner bag with four side corner guards and horizontal strapping4.Manual boxing and labeling
5.Automatic top laminating plus circumferential wrapping film6.Wear the sword on the short side and pack it with a corner protector7.The long side is inserted into the sword and the corner guard is placed for packaging
8.Double Pallet Stacking Bag
9.Double pack short side sword packing
10.Double pack long side sword packing
Technical Parameters
Packing speed: 20 stacksh
Packaging size: width 1200mm, length 2700mm, height 1200mm
Packaging product: Photovoltaic Modules
