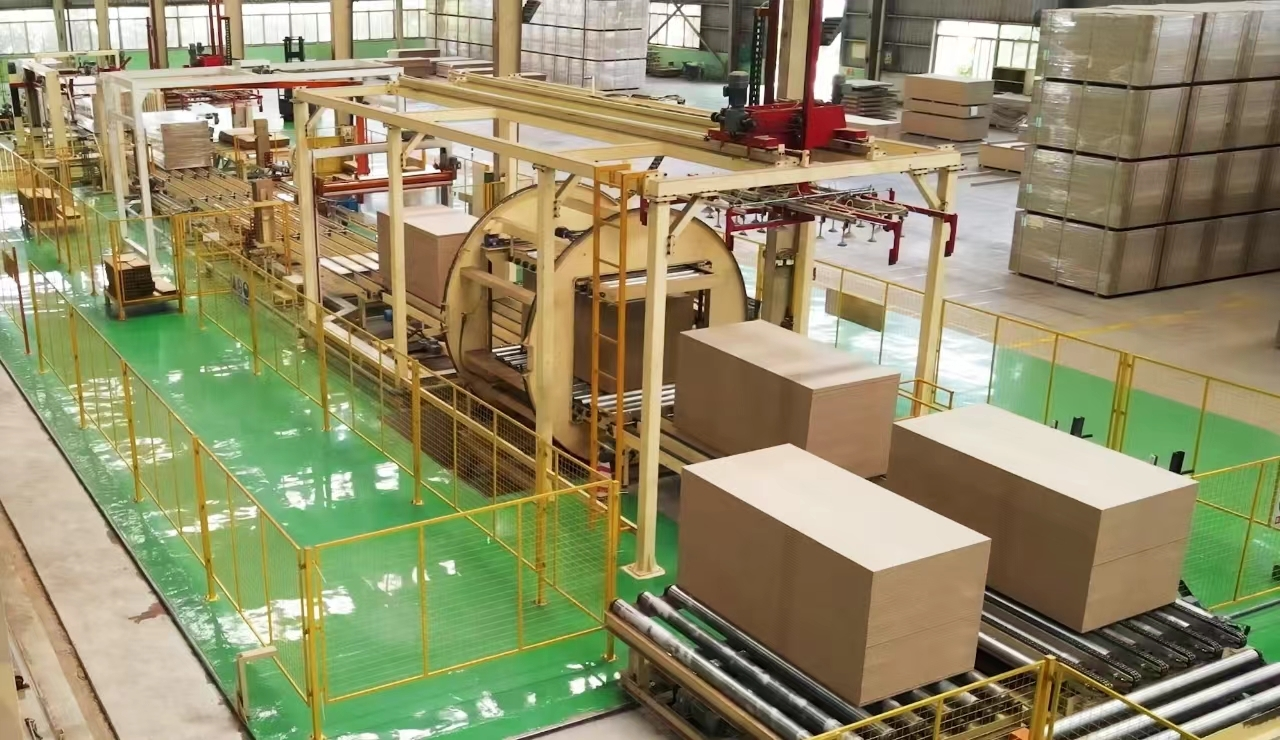

High Efficiency Pallet Packaging Line 25 Stacks Per Hour For Panel Protection
1. PLC programmable control2. Independent electric control cabinet, alarmlight, and sound;
3. Automatic winding and rotating arm designto ensure overall flexibility of packaging;
4. Suction cup vertical corner protectionmanipulator, cooperate with film wrappingmachine for circumferential packaging;
5. Automated strapping machine, to ensure thestability and transportation safety of goods;
Working Length: 2440-3050mm
Working Width: 1200-2135mm
Working Length: 22-25 stacks/h
Protect the packaging with stretch film, making itwaterproof, lake-proof and dust-proof.The rotating arm of this automatic wrapping machine isequipped with an extendable polyethylene clamp, cuttingand welding unit.
The inverter controls the lifting speed of the film rack, thespeed of the arm, the acceleration and reduction ratio.The safety fence connects to the limit switch on the door.
horizontal and vertical packagingVarious materials, convenient and fast.Users can customize,
They are employed by many large, mediumand small factories.
The equipment has the function of automaticallyadding pads
Number of pads:60
Specifications of pads: 1220mm long x 60mmwide x 60mm highRequirements for strapping: 4 strappings in thelongitudinal direction and 2 strappings in thetransverse direction to achieve parallel-shapedpackaging.Automatically place paper corner guards whenstrapping
Corner guard dimensions: 100mm long x 50mm wide x 5mm thick
Corner guard storage: 100
Working capacity: not less than 20 pallets/hour
